System Capabilities & Hardware Features
An advanced dual-DSP industrial platform engineered for simultaneous multi-channel acquisition, real-time frequency analysis, and remote telemetry control.
- Capable of analyzing sixteen vibration signals, +/- 20 Vmax (on eight voltage channels), 4-20mA (on eight current channels), using simultaneous sampling 24-bit ADCs
- Programmable sampling rate (up to 16 ksps/channel) and support for external trigger input (for s/w synchronization)
- On-board anti-aliasing filters
- Individually programmable channel gains (1, 2, 4, 8) for two current channels
- Two 150 MIPS, Floating point DSPs - TMS320F28335, one each for signal processing (asynchronous and & frequency domain analysis) and communications (RS-232, Ethernet, Touch Display etc.)
- On-DSP Flash used for storing program and user configuration
- 2MByte, 1 WS, SRAM available as local memory for each DSP
- 128KB, Dual Port SRAM for inter-processor communications
- 16x2 Character OLED display, per 8-channels
- Ethernet, RS-232 and RS-485 interfaces for transmission of vibration data to a remote host
- 4-20mA current outputs and relay control alarm outputs
- Operates on 24V DC, 1A supply
- Dimensions (height x width x depth): 267mm(6U) x 320mm(63HP) x 238mm
- Power On Self Test (POST) source code available (illustrates usage of all the hardware components available)
- 32-Channel version is also available

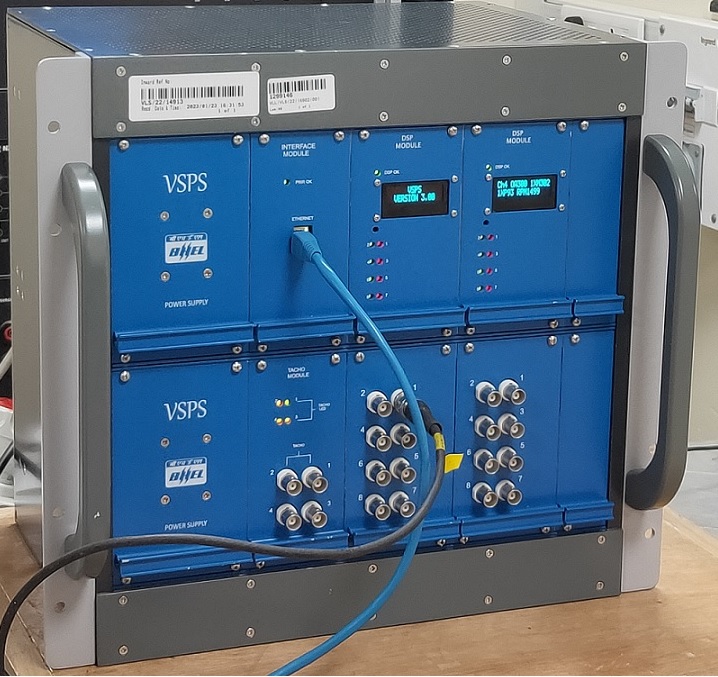

Vibration Signal Processing System Hardware Enclosure
