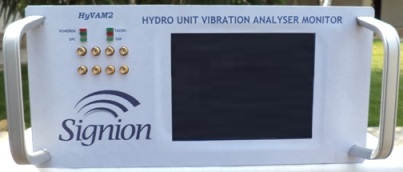

Capable of analyzing eight vibration signals, +/- 20 Vmax (on six voltage channels), 4-20mA (on two current channels), using a simultaneous sampling 24-bit ADC
Programmable sampling rate (up to 16 ksps/ channel) and support for external trigger input (for s/w synchronization)
On-board anti-aliasing filters
Individually programmable channel gains (1, 2, 4, 8) for two current channels
Two 150 MIPS, Floating point DSPs - TMS320F28335, one each for signal processing (asynchronous and & frequency domain analysis) and communications (RS-232, Ethernet, Touch Display etc.)
On-DSP Flash used for storing program and user configuration
2MByte, 1 WS, SRAM available as local memory for each DSP
128KB, Dual Port SRAM for inter-processor communications
320x240 pixel, touch screen display
Ethernet, RS-232 and RS-485 interfaces for transmission of vibration data to a remote host
4-20mA current outputs and relay control alarm outputs
Operates on 24V DC, 1A supply
Dimensions (height x width x depth): 5.2" x 9.5" x 6.4"
Power On Self Test (POST) source code available (illustrates usage of all the hardware components available)
