Technical Specifications
High-performance USB-to-RS485 conversion solution equipped with full plug-and-play architecture and custom module-based testing software for reliable data transfers.
Hardware Specifications
- DTE / DCE interface
- Complies with USB 1.1 specifications
- Bus-powered operation (70mA @ 5V)
- Fully plug-and-play (program auto-loaded to module upon PC connection)
- Maximum length of USB cable: 1m
- Maximum length of RS485 cable: 1km (using 13-core 24AWG cable)
Windows 98 & Module-Based Test Software
Optimized for Isochronous Transfers
- 2 Mps full-duplex isochronous transfers (occupies 40% USB bandwidth)
- Supports burst mode with programmable burst length and duty cycle
- Bit Error Rate Testing (BERT) for burst/continuous mode analysis
- Source code fully supplied

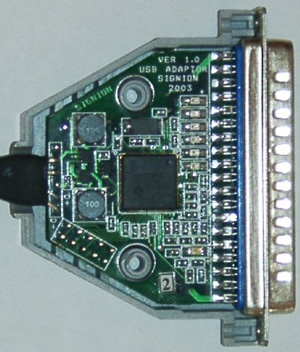

USB-to-RS485 converter unit
USB-to-RS485 converter with interface cable
